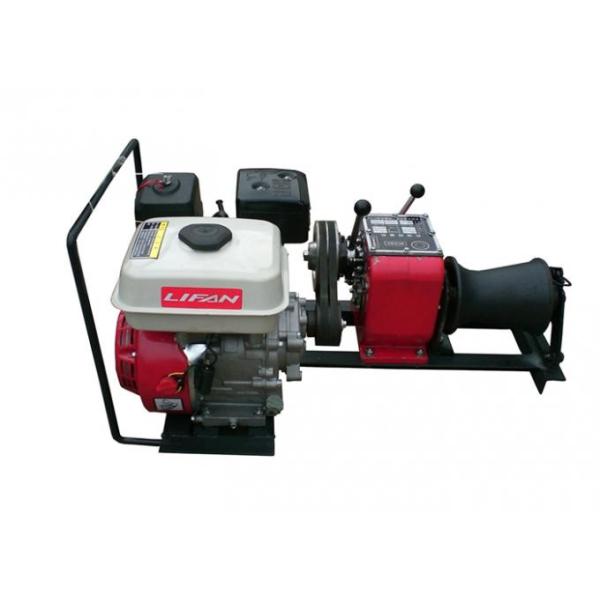

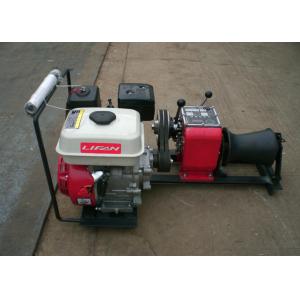

1 Ton Gasoline Engine Small Cable Pulling Winches for Power
Construction
Application
1 Ton Small Winch,Petrol Engine Powered Winch,Lifting Machine is
used for tower erection,pole setting,stringing wire in electrical
power line construction.
Winch can be modified as per requirement, such as changing curve
capstan into straight even cylindrical shape and coming with steel
rope.
Structure
1 Ton Gasoline Engine Small Cable Pulling Winches for Power
Construction
It is made up of the roller wheel, transmission, diesel or gasoline
engine and the base frame composition, motor cutter grinding works:
winch is used to pull the slot groove rope connected directly to
gasoline or diesel engine, electric motor as the driving force,
after shifting box of gear to achieve the required speed, the
machine is located on steel, robust and easy to move.
Technical Data 1 Ton Gasoline Engine Small Cable Pulling Winches for Power
Construction
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM1-Q | HONDA Petrol engine 4 HP | Slow | 10.0 | 0.8 | 36 |
| Fast | 15.0 | 0.6 |
| Reverse | 12.0 | No Lifting |
| Electric motor | Slow | 10.0 | 0.8 | 46 |
| Fast | 15.0 | 0.6 |
| Reverse | 12.0 | No Lifting |
Classification 1 Ton Gasoline Engine Small Cable Pulling Winches for Power
Construction
It is classify by engine.
1. diesel engine winch
2. gasoline engine winch
3. electric engine winch
It is classify by tranmission system
1. belt driven transmission
2. shaft driven transmission
Features 1 Ton Gasoline Engine Small Cable Pulling Winches for Power
Construction
1. Speedy and Efficient;
2. Safe and Reliable;
3. Compact structure;
4. Small volume;
5. Light in weight;
