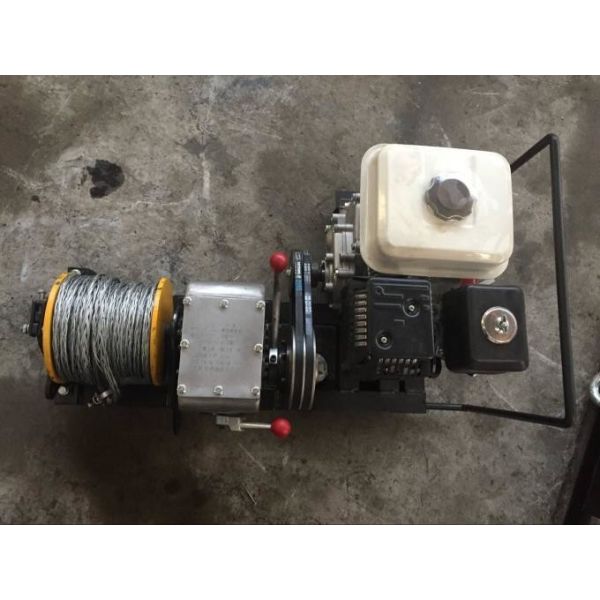

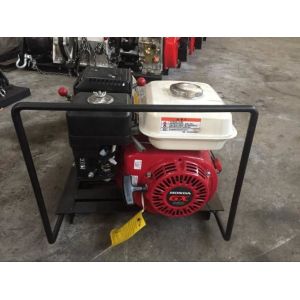

1 Ton Honda Engine Compact Electric Cable Winch Puller To Stringing
Wire
1Ton HONDA Gasoline Engine Cable Pulling Winch With Shafted Driven
Application
1. It is used for tower erection,pole setting,stringing wire in
electrical power line construction.
2. Winch can be modified as per requirement, such as changing curve
capstan into straight even
3. cylindrical shape and coming with steel rope.
Features 1 Ton Honda Engine Compact Electric Cable Winch Puller To
Stringing Wire
1. Small size & compact structure.
2. Light weight.
3. High efficiency.
4. Safe and reliable.
5. Widely used.
Technical Data of 1Ton HONDA Gasoline Engine Cable Pulling Winch
With Shafted Driven
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM1Q | HONDA gasoline engine | Slow | 10 | 0.8 | 50 |
| Fast | 15 | 0.6 |
| Reverse | 12 | NO Lifting |
Technical Data Honda Gasoline Engine MZ175
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM1Q | Honda gasoline engine MZ175 | Slow | 10 | 0.8 | 48 |
| Fast | 15 | 0.6 |
| Reverse | 12 | NO Lifting |
About Lubrication 1 Ton Honda Engine Compact Electric Cable Winch Puller To
Stringing Wire
Using the gasoline to lubricate the gearbox and using the butter to
lubricate the outside bearing.
Operation methods
1 before turning on the machine,you must turn on the clutch first
and put the racker for crosspiece-changing in the zero position
2 when moving the crosspiece,you should be quick.Otherwise the
brake won’t work well.when turning on the machine,you shouldn’t
work too fiercly
3 when changing the crosspiece position,you must turn on the
clutch.Otherwise the gear will be damaged.After that,you should
check whether the changing job is well done.Make sure you haven’t
changed two crosspieces in one time.
4 If there is any difficulty during the process of changing
crosspiece position,you shouldn’t try to complete the job
forcrfully.Instead you should use the hand installment to help you
complete the job.Concrete procedure:using the spanner to move the
hand installment to a position with a certain angle,then you can
change the crosspiece position smoothly.
